Components in Celonis Analyses allow you to visualize your process data.
New Component Section

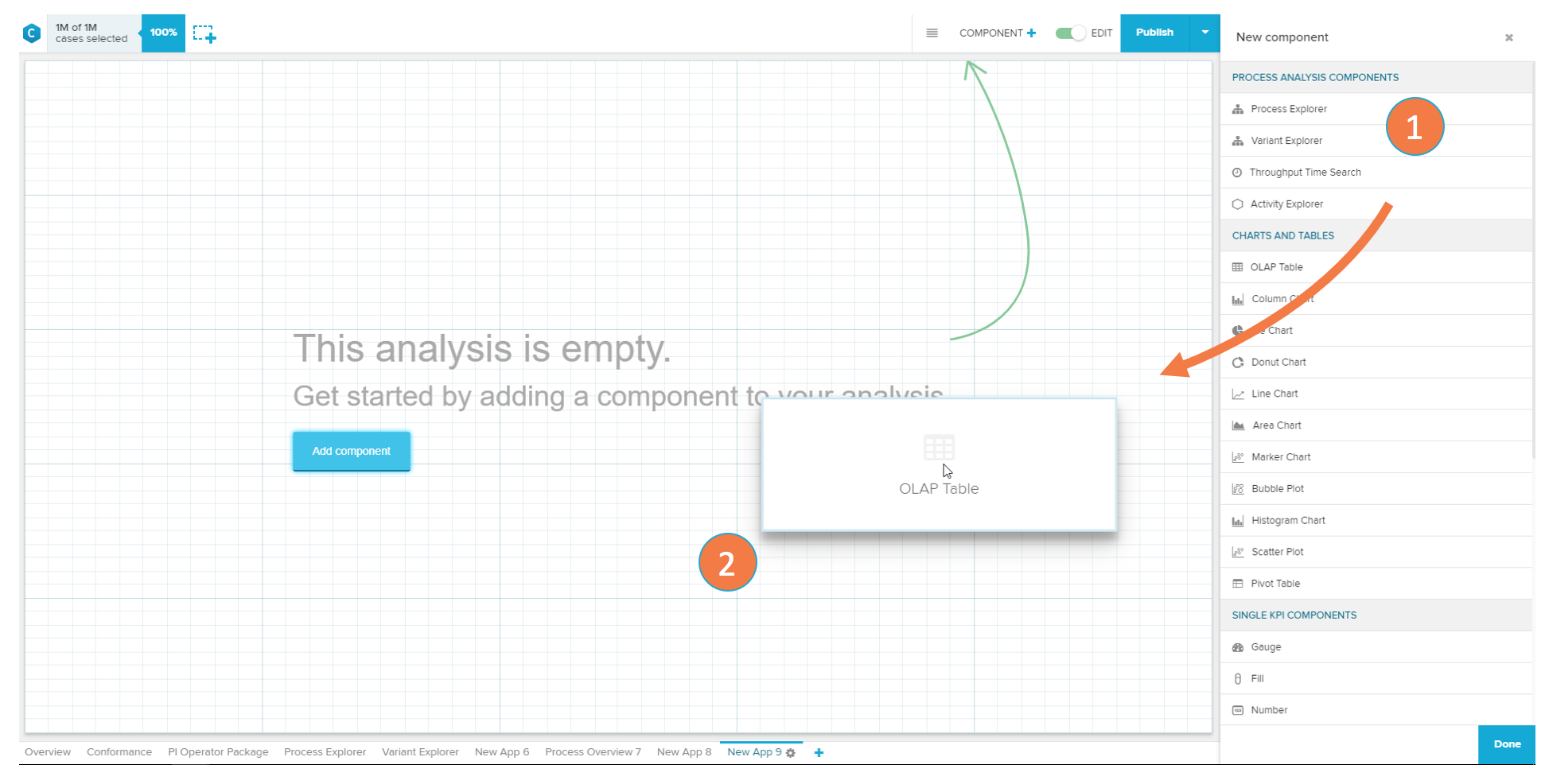

You have to be in edit mode to add new components. To create a new component from all possible options you can open the New Component Section with the:

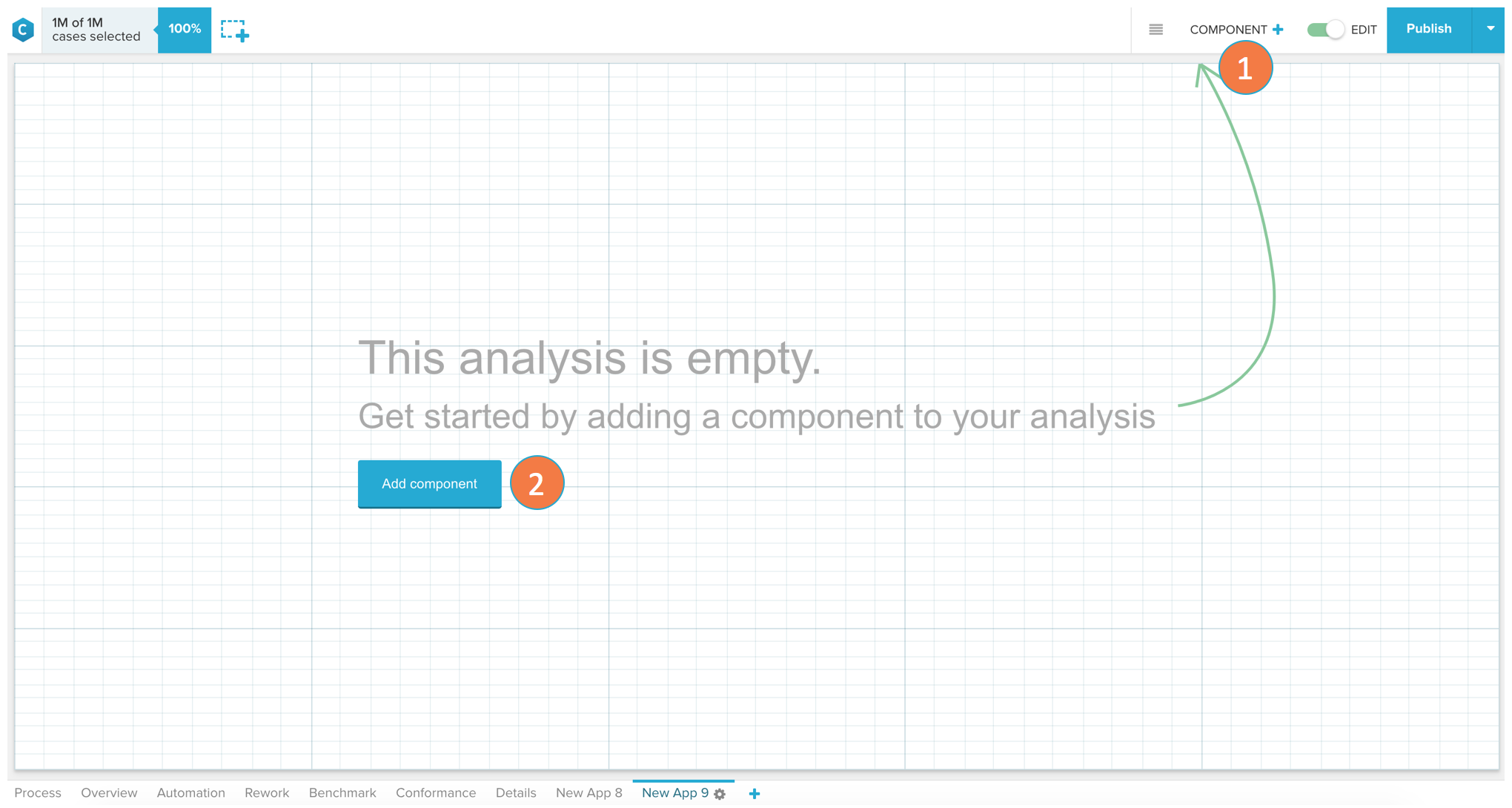

- Component+ button at the top right.
- Or the 'Add component' button on empty sheets.

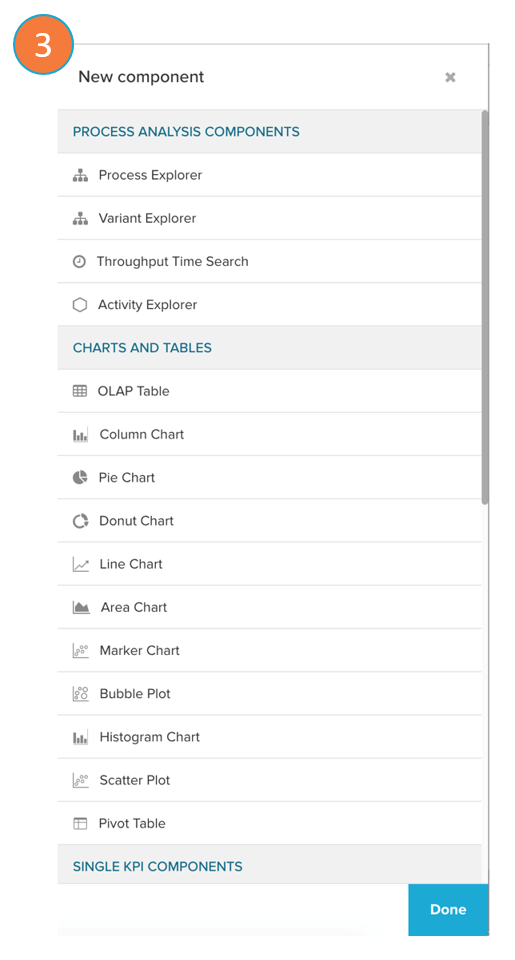

- The new component section provides access to all analyses components for the Celonis analyses
To add a component to a Analysis Sheet you need to:
- Click on one of the components in the New Component Section
- then drag and drop it to the Canvas.

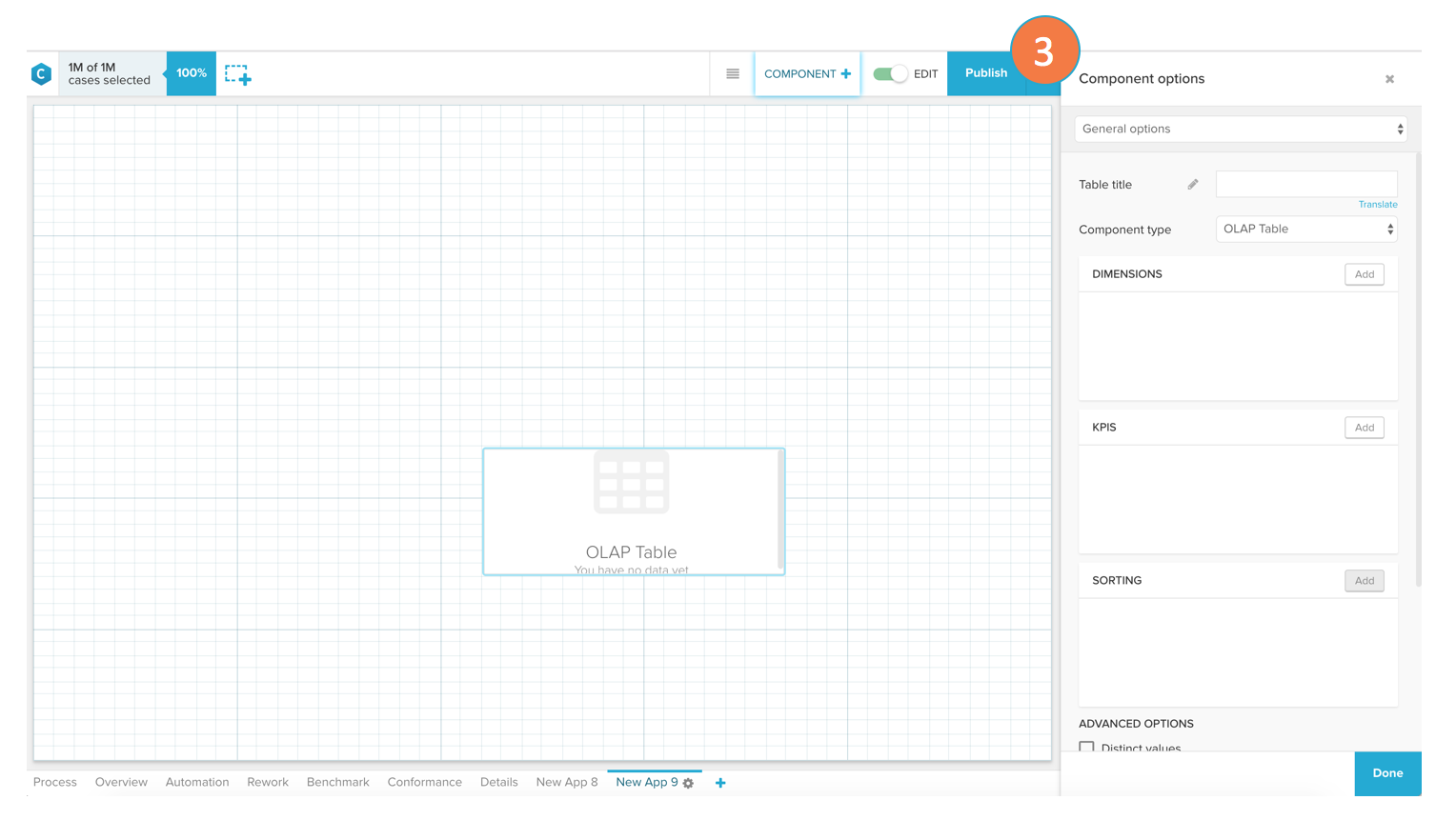

- The component will be added to the sheet in its default setting and you can use the Component Settings to define which data is shown to you.
